PRODUCT DESCRIPTION
-
-
GEMMA HYDRAULIC DISC BRAKES – 180/160mm ROTORS
-
720WH SAMSUNG CELLS – 48V 15AH BATTERY
-
ALLOY MUDGUARDS, REAR RACK & LIGHTING SYSTEM
-
24.5KG EMTB – VERSATILE & READY FOR ANY RIDE

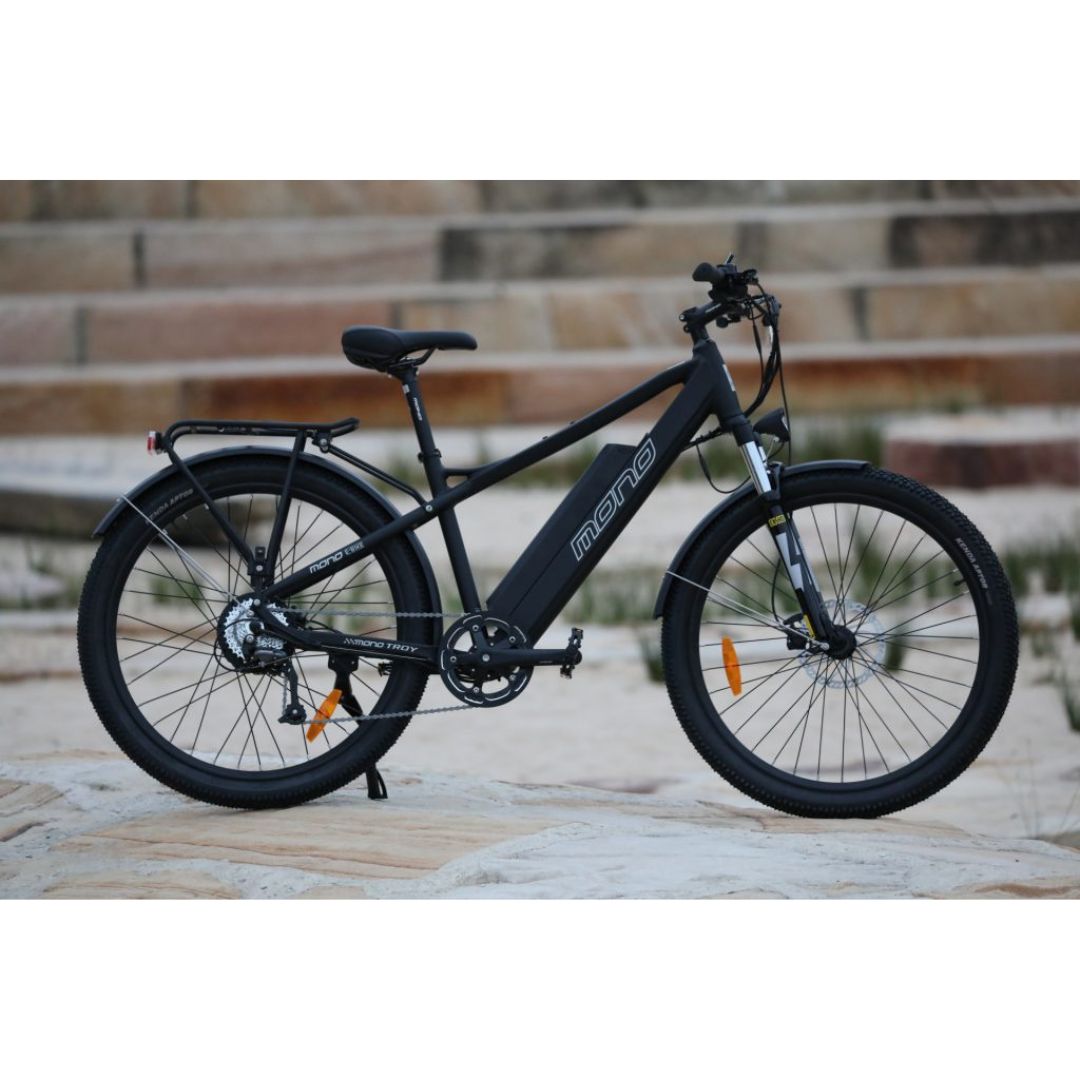

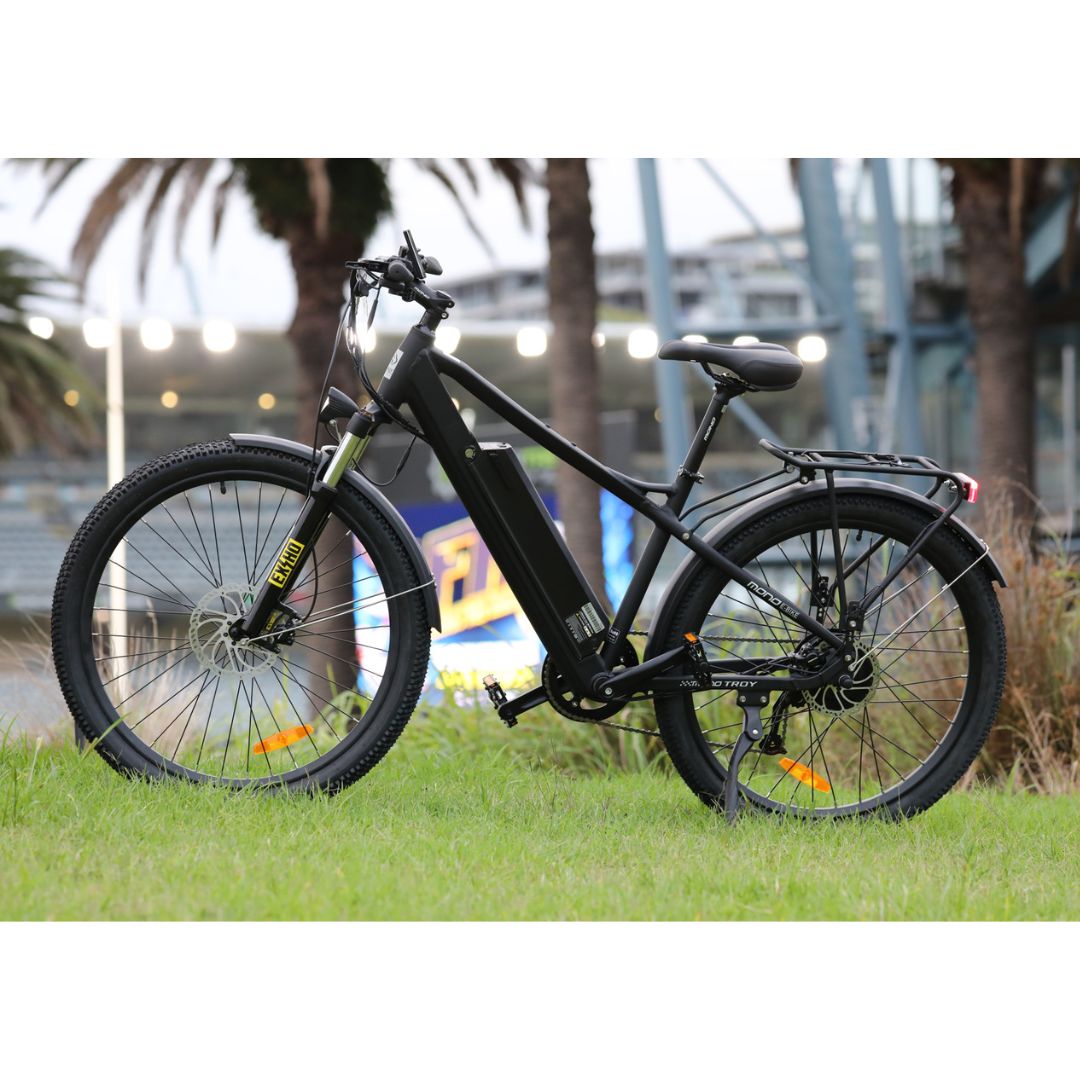

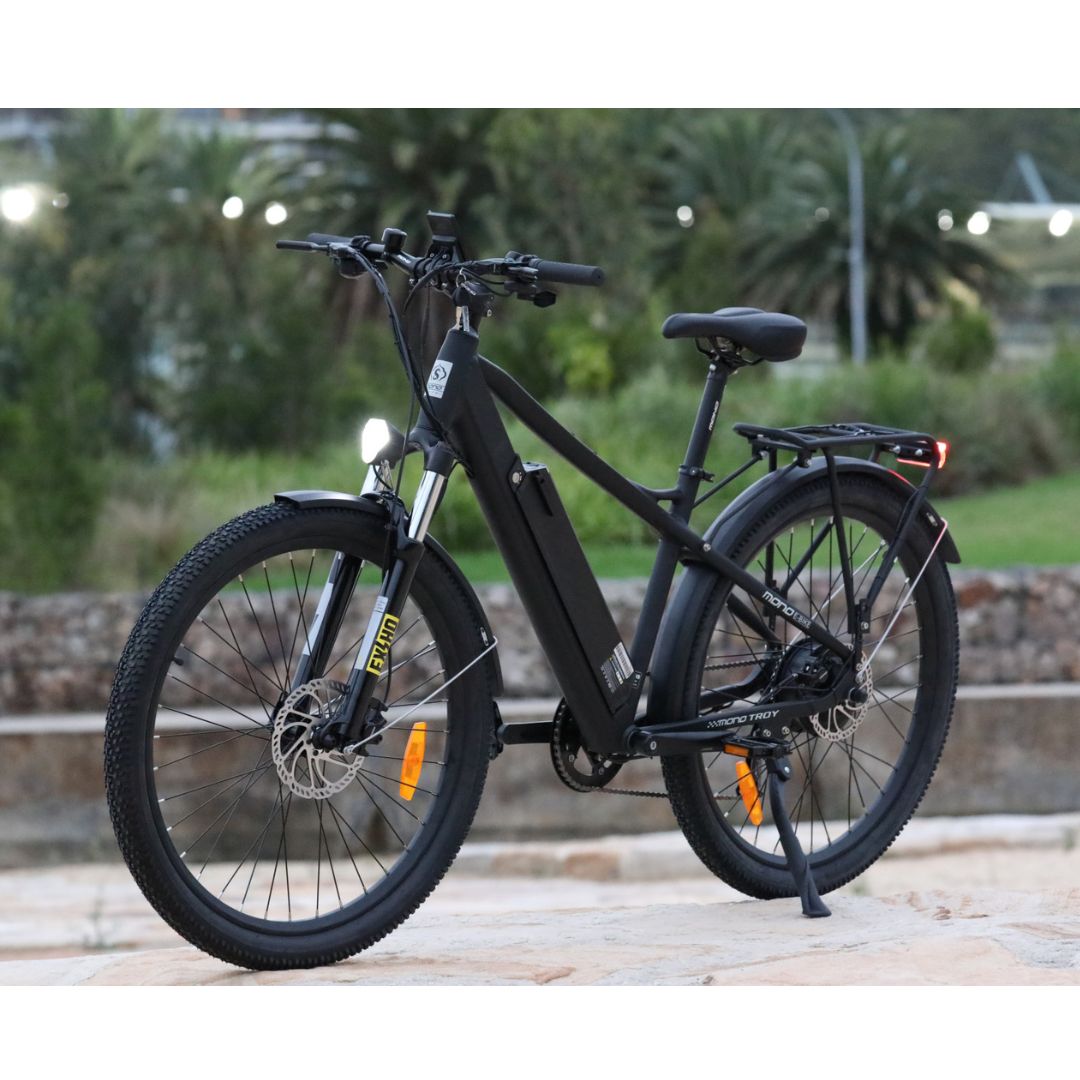

The TROY EQP combines trail-ready power with everyday practicality. With a full commuter package including integrated lights, rear rack, and fenders, this hardtail EMTB is built for riders who want more from every ride — more terrain, more utility, more confidence.
-
Description
🔧 Core Specifications
-
Frame: Aluminium-Alloy MTB Frame
-
Fork: Lockable 120mm Front Suspension
-
Seatpost: 320mm Quick Release
-
Saddle: Comfort Padded Leather
-
Handlebar: 71cm Aluminium-Alloy Bar
-
Weight: 24.5kg (including battery)
-
Max Load Capacity: 130kg
-
Front Wheel: Quick Release Design
-
Mudguards: Full Alloy Front & Rear
-

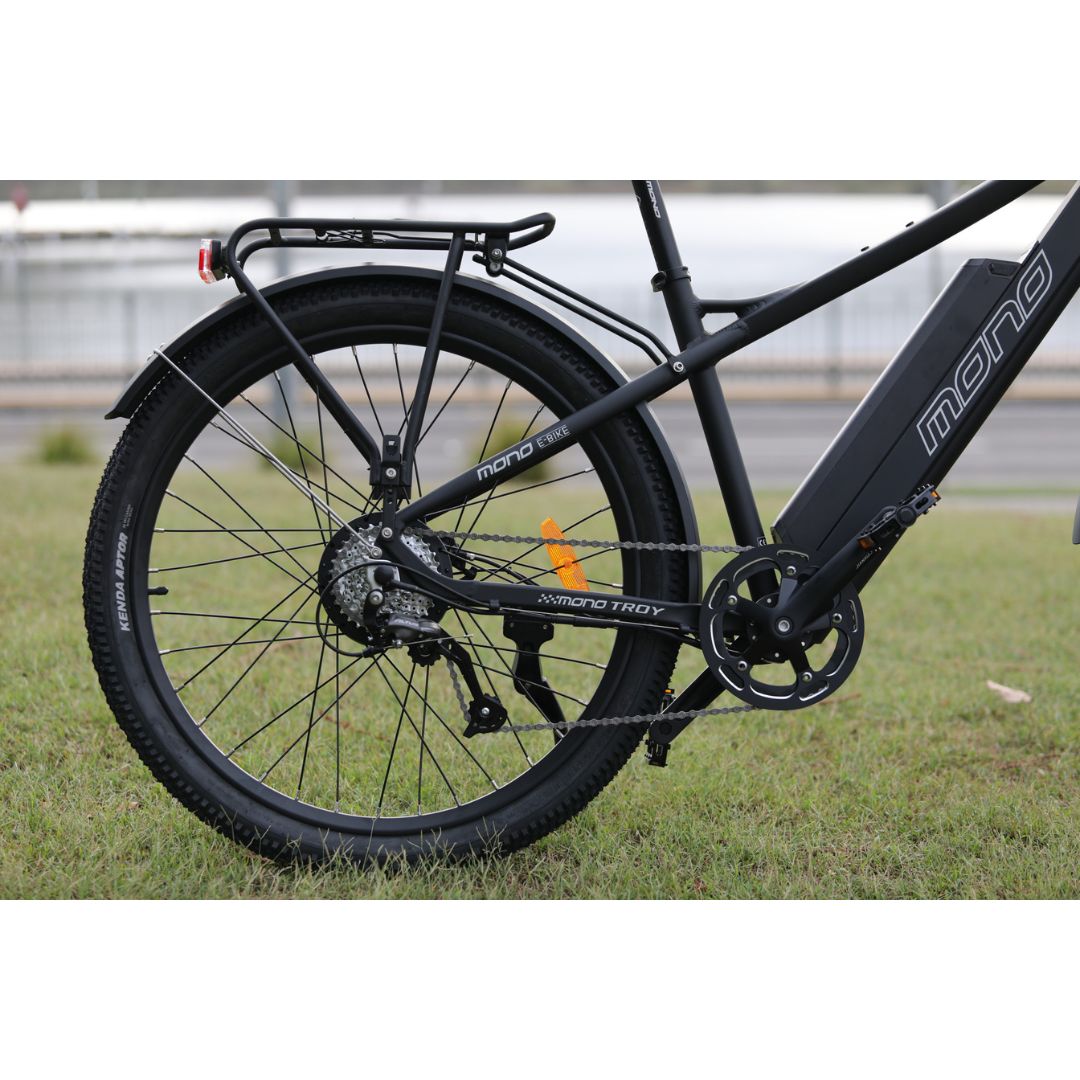

Rear Rack: Integrated Alloy Rack
-
Lights: Integrated Front & Rear with Brake Light System
🔁 Drivetrain
-

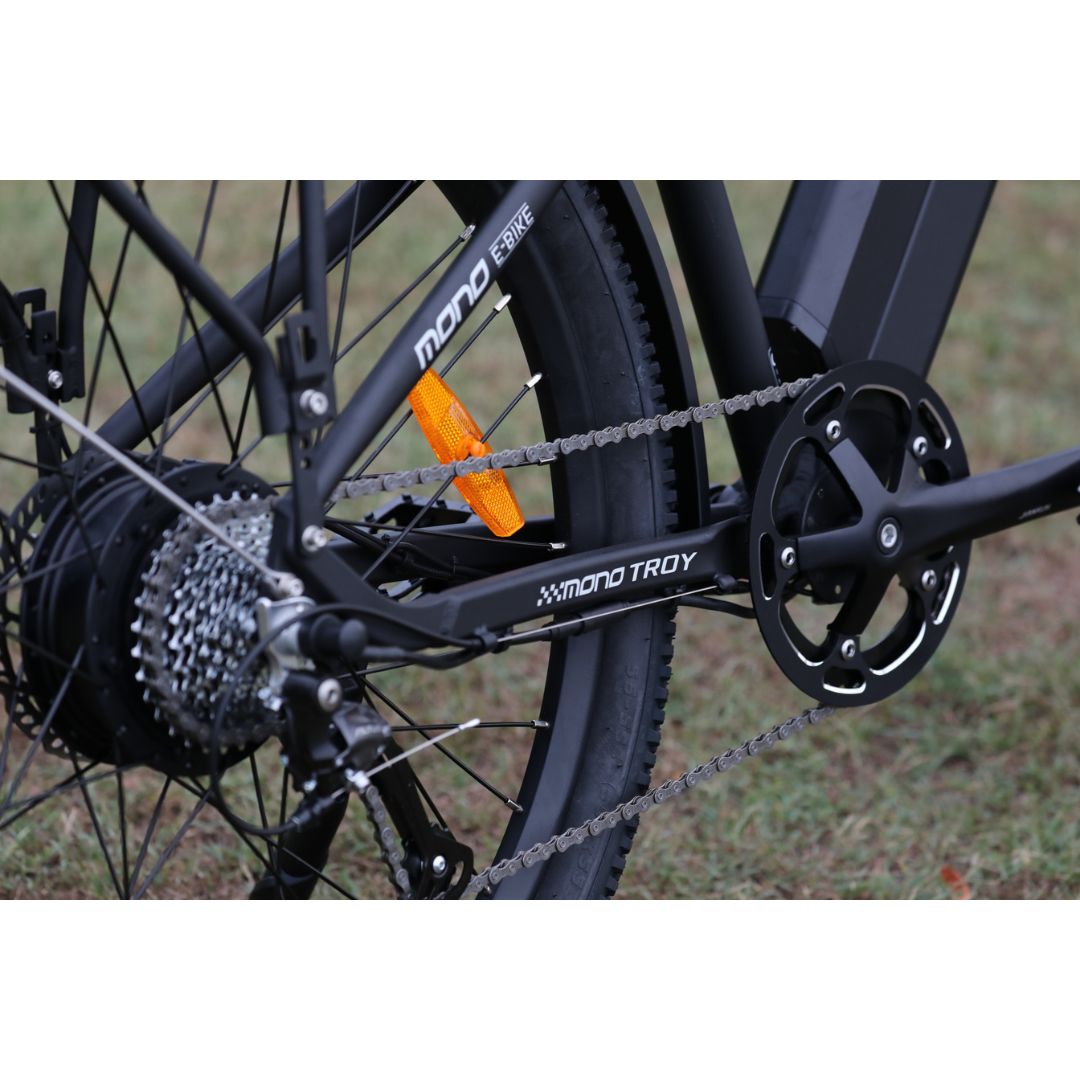

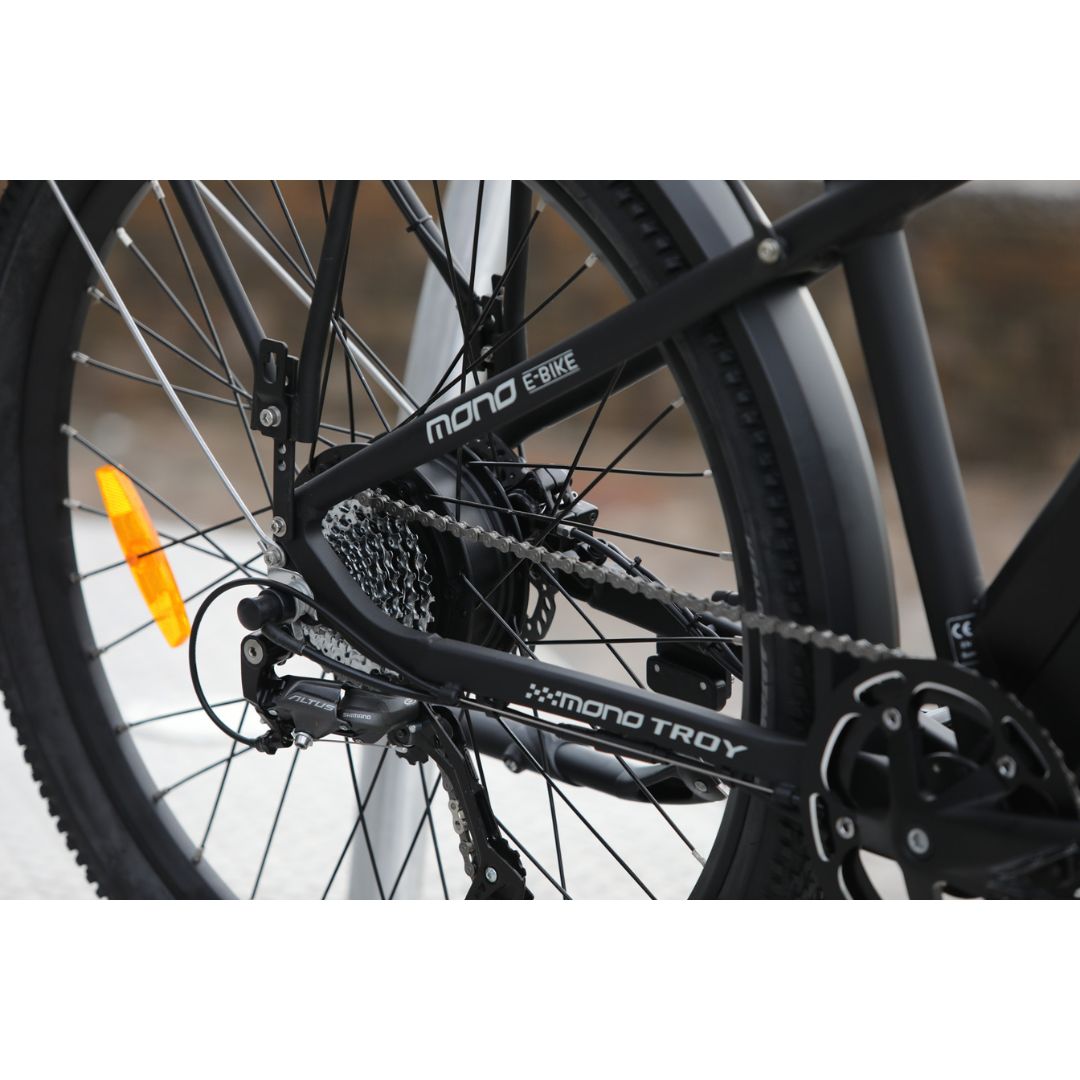

Gearing: Shimano Altus 9-Speed Cassette with Trigger Shifter
-
Cranks: Cotterless Alloy
🛞 Wheels & Tyres
-
Wheel Size: 27.5”
-

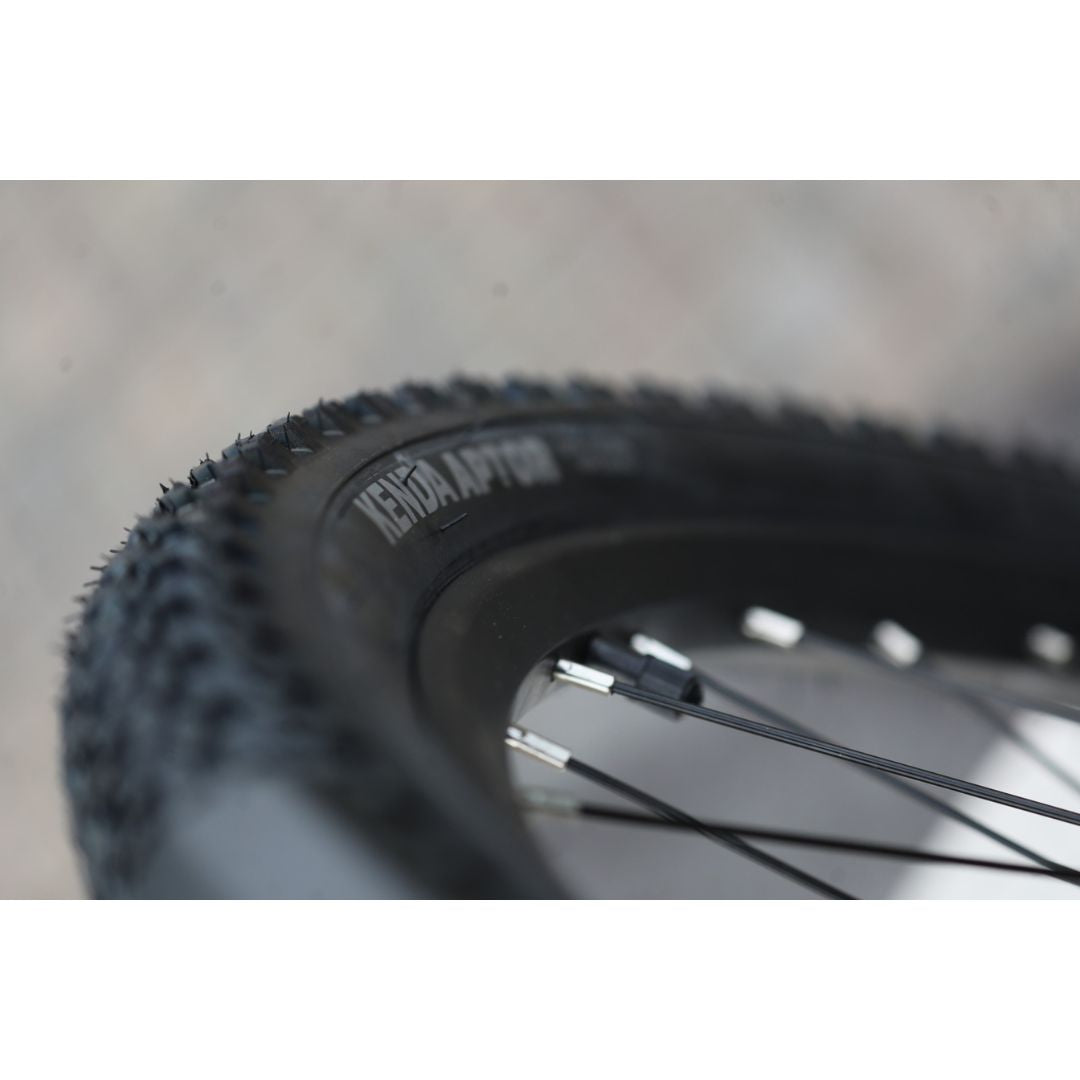

Tyres: Kenda 27.5” x 2.1” All-Terrain
🛑 Braking System
-
Front Brake: Gemma Hydraulic Disc – 180mm
-
Rear Brake: Gemma Hydraulic Disc – 160mm
⚡ Electric System
-
Motor: 48V 500W High Torque Rear Hub Motor (Peaks 750W)
Power can be limited to 250W to meet local state regulations
-
Battery: 48V 15Ah (720Wh) Lithium Battery with Samsung Cells
-
Controller: 48V 18A
-
Range: 60–80km per charge (depends on assist level & terrain)
-
Pedal Assist: 5 Levels – Max Speed 25km/h
-
Throttle: Included – limited to 6km/h (NSW compliance)
-

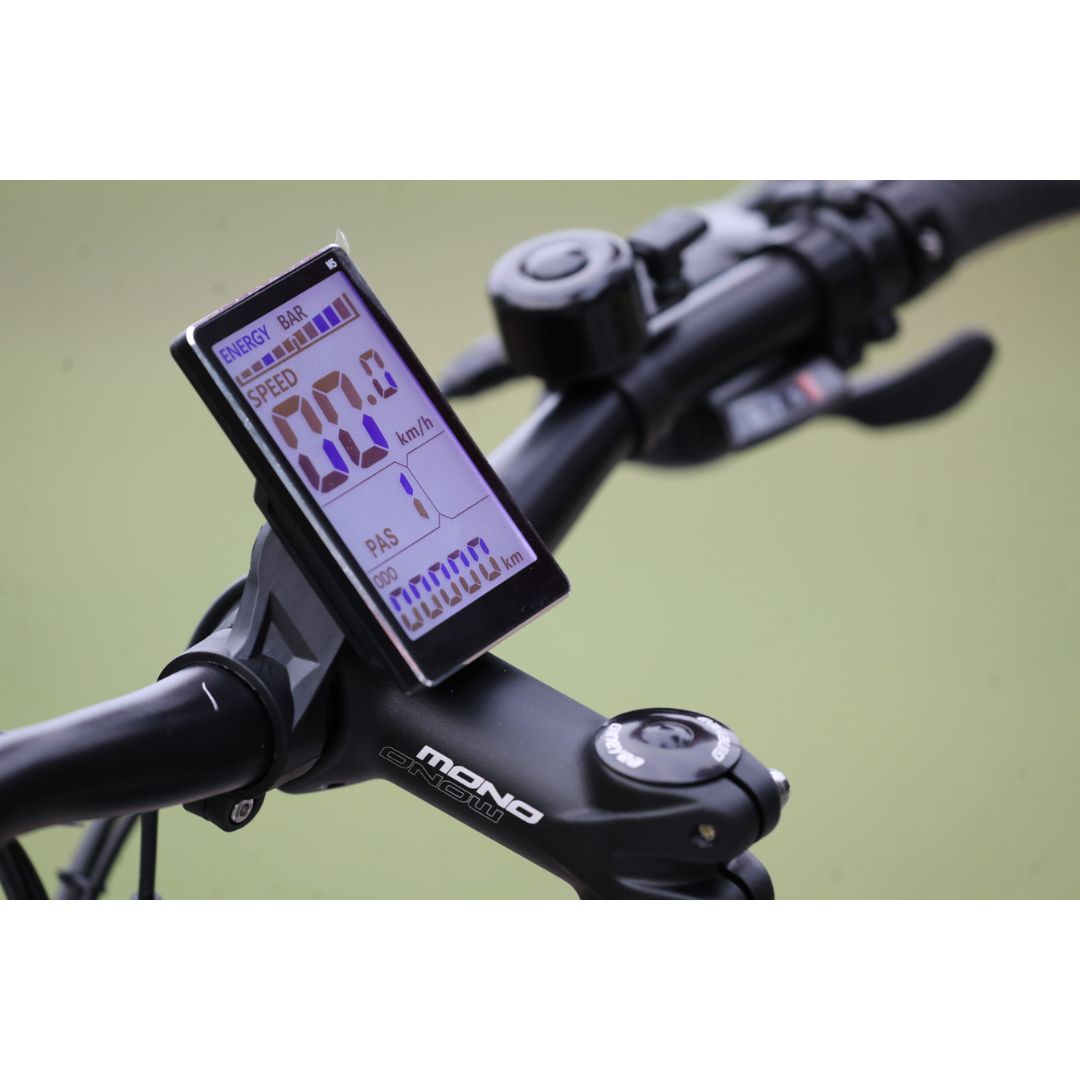

Display: Multi-Function LCD Panel
-
USB Output: Yes (1A port built into battery)
-
Charge Time: Approx. 5–7 hours
🔌 Charger Specifications
-
Output: 48V DC, 2.0A
-
Input: 100–240V AC, 50/60Hz
-
Connector: Mini Pin Plug (1-Pin Style)
-
Plug: Australian Standard
-
Safety Protections: Over-voltage, over-current, short-circuit
-
Compatibility: E-MONO 48V Systems Only
🛠 Assembly & Maintenance
-
This e-bike is shipped partially assembled.
-
We recommend professional assembly by a certified bicycle mechanic.
-
A follow-up check-up after one month is also advised to ensure all systems are secure and calibrated.
⚠️ Disclaimer
-
This product complies with Australian e-bike laws and is limited to a max speed of 25km/h using pedal assist.
-
Motor power can be limited to 250W to meet specific state regulations.
-
Riders are responsible for checking and complying with local laws.
Additional Information
Weight | 23 kg |
---|---|
Dimensions | 144 × 22 × 76 cm |
Colour |
Matt Black, Matt Grey |
Motor Sizes |
250W, 500W |
